On this knowledge platform, relevant information on energy-related topics concerning the Gabreta project will be presented in a concise and simple manner.
Gabreta Smart Grids is a project focused on the accelerated modernisation and digitalisation of the electricity distribution system in the Czech and German border region. The aim is to create a “Smart Grid”, which effectively connects decentralised electricity generation, consumption and its real-time management.
Distribution grid
The electrical grid in Germany and the Czech Republic consists of the transmission system and the distribution system. The transmission system enables the transport of large quantities of electricity over long distances. The distribution system serves to distribute, supply, and integrate decentralized energy. The construction and operation of the distribution system are the responsibility of the distribution system operator, such as Bayernwerk Netz GmbH and EG.D.
The extra-high voltage network in Germany and the Czech Republic, operated at 110 kilovolts (kV), distributes electricity regionally. These power lines lead to primary substations and secondary substations in residential areas and also supply heavy industry.
An illustrative analogy compares the electrical distribution network to a transportation system consisting of airline routes, highways, and primary, secondary, and tertiary roads: the transmission system represents the highways. At primary substations - akin to highway exits- transformers adjust the electricity to higher or lower voltage levels. Subsequently, the electricity merges into the distribution system, which connects regional power plants, wind and solar farms, and heavy industry - similar to primary roads in transportation.
Primary substations connect the extra-high voltage network to the high-voltage network. The high-voltage network connects small production facilities as well as medium-sized industrial enterprises or large office and commercial buildings. To deliver electricity to households and small businesses, secondary digital substations convert it to low voltage (230 V – 400 V).
The energy transition has led to energy being increasingly produced decentralized in many small renewable energy facilities, such as wind and solar power plants, instead of being generated in a few large power plants as before. Wind and solar power plants feed this electricity directly into the distribution network, which then supplies it directly to end consumers in the nearby area without first passing through the transmission system. This means that in the future, electricity will be delivered from one doorstep to another without prior centralized collection and sorting.
To ensure that electricity reaches the exact locations where it is needed at every hour of the day and night, it must be intelligently managed. This is the role of modern distribution systems. If locally produced green energy is not consumed immediately, a portion of it can be stored on-site, for example, in a pumped hydroelectric plant. This stored energy is then distributed when demand is particularly high, or when the wind isn't blowing or the sun isn't shining: thus, capacity shortages and surpluses are balanced through intelligent grid management.
Without the electrical distribution network, neither households nor businesses can be supplied with green energy. Through a digital distribution network, we gain real-time insights into how much electricity is being produced by hundreds of thousands of small producers, how much electricity consumers currently need, and how much energy we can store.

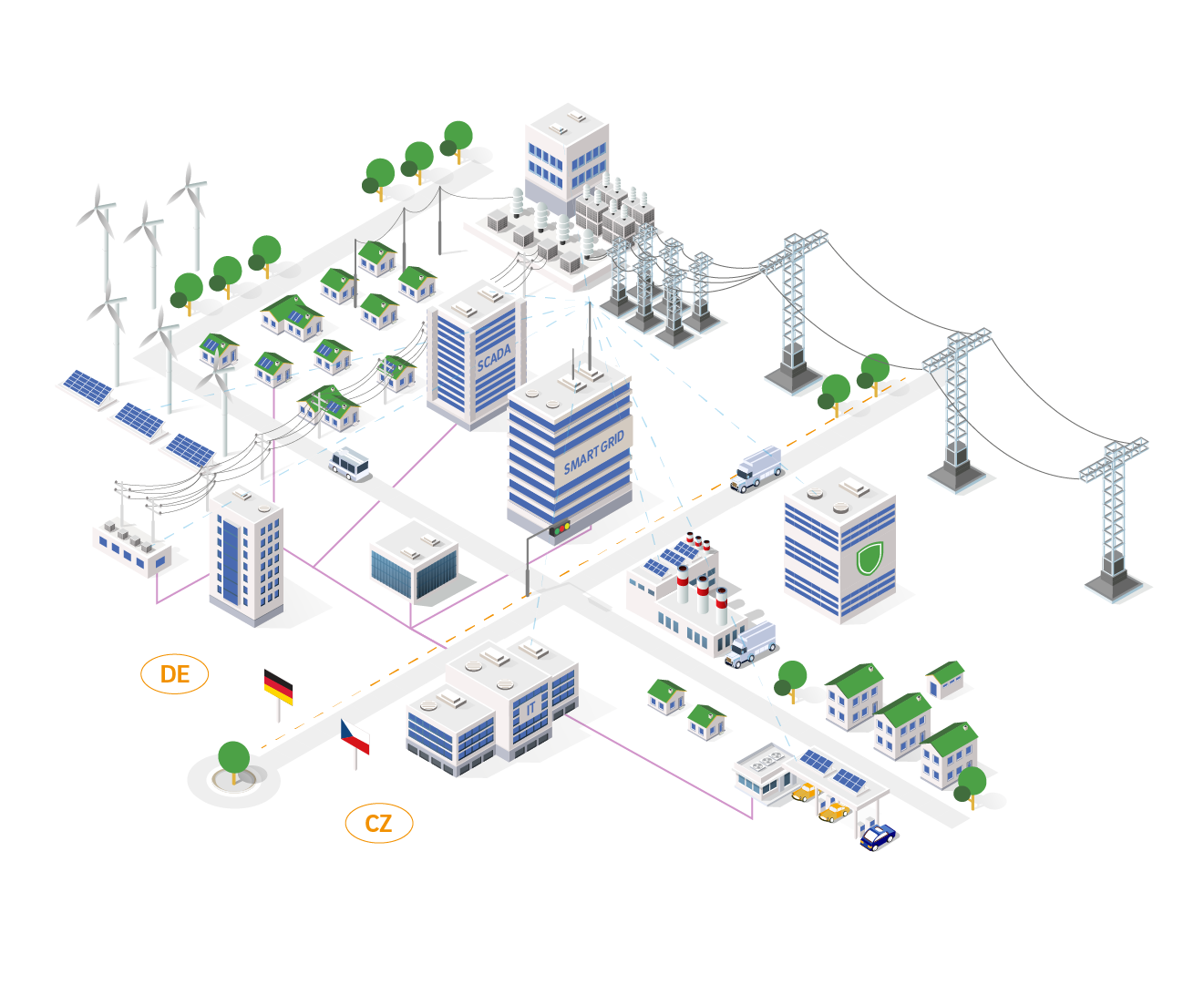

The Smart Grid is a smart energy network that connects all participants in the energy system using digital technologies. The grid facilitates real-time monitoring, management and optimisation of electricity generation, distribution and consumption.
Thanks to the Smart Grid, it is possible to determine exactly when and where electricity is generated and consumed. Data is collected using sensors, smart meters and controllers. This information is then analysed and provides automatic generation and distribution management to match current demand at all times.The Smart Grid is designed to easily integrate renewable energy sources such as solar and wind power. With this smart management, surplus energy can be stored and used at times of increased demand.
How does the Smart Grid work?
The Smart Grid is revolutionising the power distribution industry. It integrates generation, consumption and energy storage into a single smart system. This grid dynamically responds to changes in demand and generation, contributing to the stability of the entire energy system.
• Optimised management: The Smart Grid can efficiently balance energy consumption and generation. If production is higher than actual consumption, the grid stores excess energy and releases it at peak times.
• Digitisation for safety: Advanced monitoring systems such as the Trafo-Health-Index continuously monitor the condition of transformers, providing rapid detection and prevention of failures. This feature significantly increases the safety and reliability of the power supply.
• Extended sustainability: The Smart Grid promotes the greater integration of renewables. Thanks to the precise management of the electricity flow, it is possible to integrate larger numbers of solar and wind power plants into the grid, even under unstable weather conditions.
• Efficient load management: The Smart Grid can optimise the distribution of electricity according to current demand. Automated systems can be used to manage charging stations for electric vehicles or heat pumps and avoid grid overload.
• Local power generation: The Smart Grid facilitates decentralised power generation. Households and businesses can generate their own electricity and share excess power with the grid, reducing the need for long-distance transmission and protecting natural resources.
• Valuable transparency: Smart metering provides consumers with accurate information about their consumption. This promotes energy-saving behaviour and better use of energy.
• Advanced electromobility: The Smart Grid simplifies charging of electric vehicles when there is sufficient energy available under favourable conditions, thus helping to balance grid loads and supporting the development of sustainable transport.
• Smart communication: The network uses Internet of Things (IoT) technologies to connect digital and real-world elements. This feature enables better coordination between electricity generation, consumption and storage, leading to cost savings and more efficient use of energy.
To ensure reliable and efficient operation of the distribution network, centralised control systems are used to monitor, control and optimise the network in real time. The SCADA system, which collects and analyses data from all parts of the distribution system, is an essential tool.
What does the SCADA system provide?
• Data collection – The system continuously monitors the current status of the power grid, recording parameters of voltage, currents and other variables.
• Remote control – Allows controllers to remotely control various elements of the power grid, speeding up response to failures.• Graphical visualisation – Controllers can clearly see power facilities and their interconnections.
• Incident reporting – Every failure, incident or change in the grid is automatically reported for future analysis.
• Operation optimisation – The SCADA system enables electricity transmissions to be managed so as to minimise losses and increase distribution efficiency.
How does the SCADA system work?
The system creates a digital twin of the distribution network that provides a detailed, real-time view of all facilities. This system not only enables controllers to react to current incidents, but also to analyse historical data and plan maintenance or network development.
Why is SCADA important?
SCADA is a key element for the safe and efficient management of the power grid. Thanks to SCADA, we can quickly detect and eliminate failures, optimise the use of renewable resources and ensure a stable supply of electricity, even with increasing demand.
Primary substations are critical nodal points in the electricity network, where electricity is converted from higher to lower voltages so that it can be efficiently distributed to households and businesses.
How does a primary substation work?
Primary substations take electricity from the transmission system and use transformers to convert it to a lower voltage that is safe for distribution to consumers. They ensure that electricity is supplied to the places where it is needed without significant losses.
The importance of primary substation in modern power engineering
With the increasing number of decentralised power generation plants, the role of primary substation has become even more important. They provide an efficient interconnection of solar power plants and wind farms to the grid and enable voltage stabilisation.
Secondary digital substations connect the medium and low voltage and provide real-time data on electricity flows (Image source: Tobias Lindner)
The secondary digital substation (SDS) is a modernised version of the traditional transformer substation. SDS are key elements of the Smart Grid. They facilitate the smart, real-time control of electricity distribution and communication between different parts of the grid.
What is it used for?
A secondary digital substation is used as a power “distribution centre”. This substation transforms medium-voltage current into the low-voltage current that is needed in households and businesses. SDS make this “distribution centre” smarter and more efficient.
Secondary Digital Substation and its functions
• Continuous monitoring: SDS constantly monitor the flow of electricity through the network. They collect and analyse data about the flow of electricity in the grid. As a result, controllers in the control room have a continuous overview of the status of the network and are able to react quickly to any problems.
• Fast failure identification: Advanced sensors and diagnostic tools provide immediate detection of problems such as short circuits or network failures. These features accelerate repairs and reduce the time of power outages.
• Remote control and maintenance: SDS systems allow operators to make adjustments and troubleshoot problems remotely, without requiring any physical intervention. This reduces downtime and maintenance costs.
• Enhanced efficiency: Smart load management helps reduce network congestion and minimise energy losses. SDS also collect and analyse network data to identify patterns and improve operational efficiency.
• Integration of renewable energy sources: SDS play a key role in connecting renewable energy sources, such as solar power plants and wind farms, to the grid. They enable the efficient and stable transmission of power from these sources to our homes.
Benefits for both the network and the consumer
Secondary digital substations contribute to a stable, sustainable and cost-effective power supply. They provide consumers with a reliable power supply with an increasing share of renewables. In the future, SDS will help us make better use of photovoltaic panels, batteries and electric vehicles.
Fibre optic cable installation is a necessary step towards the digitalisation of the energy network. The Gabreta project uses an innovative method of wrapping fibre optic cable around power line conductors. This method brings faster and more efficient deployment of this technology, also in challenging terrain.
• Reducing infrastructure costs
• Enhanced resistance to weather conditions
• More efficient data flow management
Implementation solution for the Czech Republic: Two-phase reliability verification
The installation was divided into two phases in order to test the reliability of the technology. First, we tested the fibre optic cables behaviour in extreme conditions on a 1.5 km long section in Vysočina (the Vysočina Region).
After evaluating the results, we plan to extend the cable another 28.5 km. The total investment in this solution is approximately CZK 19 million.
Thanks to this approach, construction interventions in the landscape are minimised and the need for new electricity pylons is reduced. We first used this method three years ago to connect the Hrušovany substation to the Hostěradice switching station.
Assistance from the UK
However, we face more difficult terrain conditions in the Vysočina Region. Therefore, we have engaged specialists from AFL in the UK, who have extensive experience in similar installations around the world. Their expert supervision will ensure maximum efficiency and long-term reliability of the network.

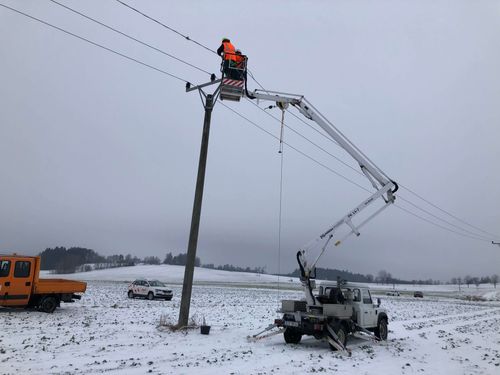

Service technicians from EG.D install an optical fibre on a Czech medium-voltage line (Image source: EG.D).
1. Integration into the European energy market
The Gabreta project interconnects the Czech Republic’s grid with Germany (Bavaria) and therefore brings several advantages. The interconnection reduces the risk of power outages for households and businesses and improves the stability of power supply. The project uses modern technology to manage and monitor the power grid more efficiently, contributing to its greater flexibility and enabling better integration of renewable energy sources. Gabreta is an important step towards creating a single European energy market and promoting sustainable energy development, which will eventually benefit all consumers.
2. Decentralisation and decarbonisation
Gabreta will facilitate the connection of more renewable energy sources, such as solar panels and wind farms, to our grid. This will help us reduce our dependence on fossil fuels and improve our impact on the environment. Moreover, smart grids will help us make better use of these resources, no matter whether the sun is shining or the wind blowing.
3. Reducing transmission losses
We will reduce power transmission losses with smarter technologies and shorter power transmission paths. This means more energy will reach our consumers and less will be lost in transmission.
4. Enabling new customer solutions and a new market structure through digitalisation
Gabreta will enable the introduction of smart meters and systems for efficient energy management. Thanks to these systems, customers will have a better overview of their consumption and can optimise it more effectively, helping them to save on their costs. Smart grids will also increase the energy system’s flexibility and facilitate response to changes in energy production and consumption.
5. European energy independence
The EU relies heavily on energy sources from third countries, which makes it vulnerable in times of political instability. Integrating renewable energy sources through smart grids is crucial to achieving energy independence and reducing the impact of external events on Europe. Renewable energy is now a key element in ensuring a stable and independent energy supply.
6. Security and reliability of the distribution system operations
Smart devices and reliable communication technologies ensure a safer and more reliable operation of our grid. This will result in faster solutions to failures and a stable energy supply for everyone.
